Wiring Harness for Gibson Les Paul - CTS Long Shaft Pots & Emerson PIO Caps

Regular price $119.70

STARR GUITAR SYSTEMS 50's style wiring replacement electronics for USA made Les Paul's! Each set is assembled, hand wired and soldered in the USA by Dave Starr using premium USA parts. Get rid of the tone sucking PCB electronics on your modern Les Paul, or replace your old worn out parts with these premium replacement units! All units are signed by Dave Starr and have their own serial number. FREE SHIPPING!

Included in each SGSLPE LONG SHAFT set:
4) CTS 500K audio taper long shaft pots. 3/4 inch tall threaded bushing with 3/8 inch diameter. 24 spline split knurled shaft. Includes nut, lock, and dress washer. These work best with push on knobs.
2) USA made Emerson Bumblebee PIO Capacitors; .022uf Bridge, & .015uf Neck)

3) 18 gauge solid tinned copper ground wires

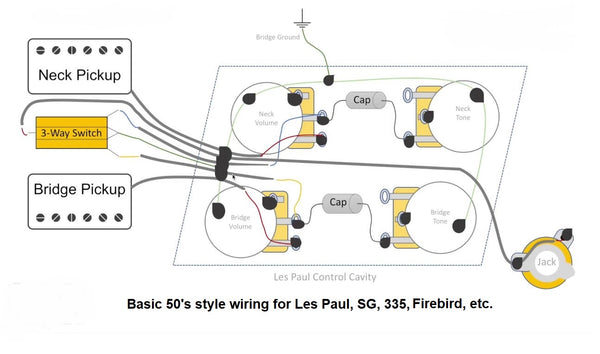

1) Wiring diagram (sent via email)
1) Assembly template board


Note: Most guitars manufactured overseas in Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
