Wiring Harness for Gibson Explorer Bass: 1980's

Regular price $62.00

STARR GUITAR replacement electronics for Gibson Explorer Bass, 1980's

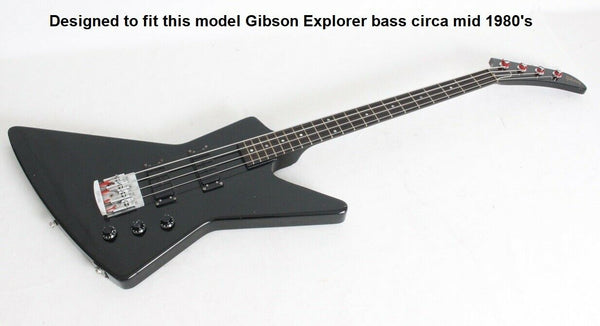

  • Made to fit the 1980's circa Gibson Explorer bass (see pics) with 2" center to center spread between the 3 pots
BASS system includes:

2) CTS 500K volume pots, audio taper, split shaft, 3/8" tall threaded collar, requires 3/8" diameter hole
1) CTS 250K master tone pot, audio taper, split shaft, 3/8" tall threaded collar, requires 3/8" diameter hole
1) Orange Drop .047 Capacitor
1) 18 gauge buss master ground wire
4) 22 gauge Gavitt vintage cloth wires, white & black

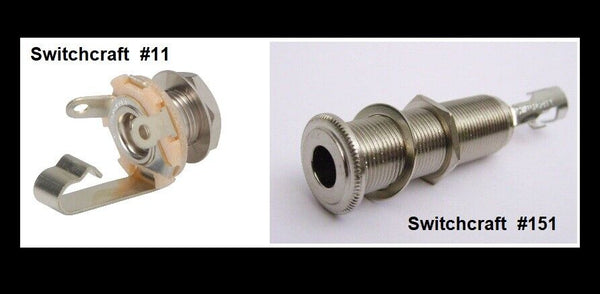

1) Switchcraft Jack model #11 or model #151 (see pics)
1) Mounting template
1) Wiring info

Premium replacement electronics for your Gibson Explorer Bass! Each set is assembled, hand wired and soldered in the USA using premium parts. Upgrade your import bass electronics, or replace your old worn out parts with these premium replacement units! Simply attach your pickup wires, and bridge ground wire and you are ready to rock! All sets are signed by Dave Starr and have their own serial number.

Note: Most guitars manufactured overseas in South Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
