Wiring Harness for Gibson Nighthawk ST3

Regular price $79.00

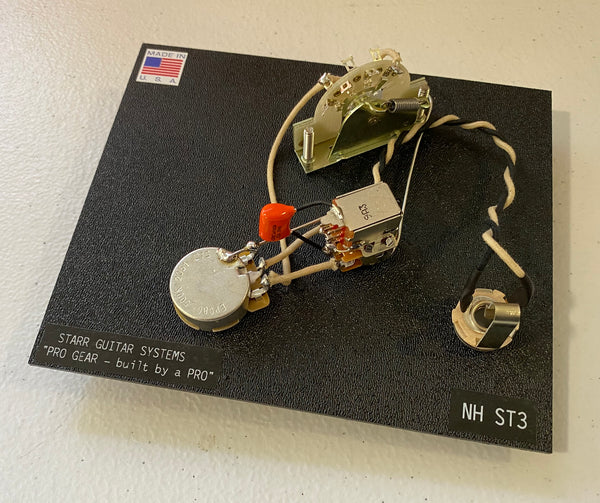

STARR GUITAR SYSTEMS Harness upgrade for Gibson Nighthawk ST3 (3 pickup model)

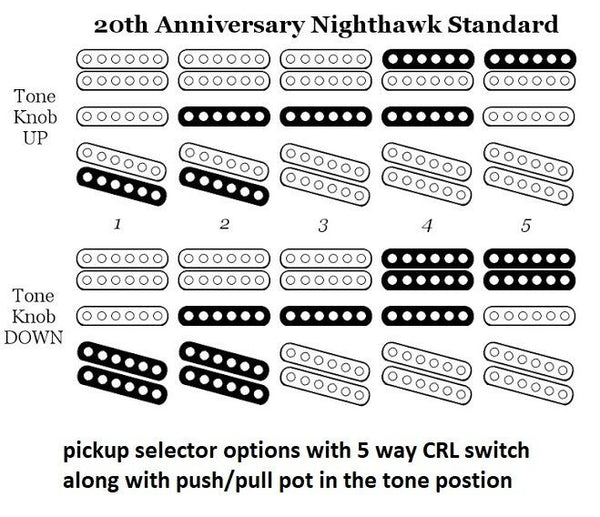

This harness is wired similar to the 2013 Gibson 20th Anniversary Nighthawk. See the picture above for the pickup switching combinations. You will need the stock pickups in the bridge and neck positions (or similar 4 conductor wire pickups) in order for this to work properly.

Included in each Gibson Nighthawk 3 pickup set:

1) CTS 500K audio taper volume pot. Includes nut, lock, and dress washer. These work best with push on knobs.
1) 500K push/pull tone pot (coil split for bridge and neck position pickups)
1) CRL 5 way pickup selector switch with black tip

1) Orange Drop capacitor .022 uf 100 volt

1) Switchcraft 1/4 inch mono #11 input jack
1) Gavitt vintage cloth wire bundle, black & white

1) Wiring diagram (sent via email)
1) Assembly template board

Wiring diagram (sent via email)

Replace your old worn out parts with these premium replacement units! All units hand soldered with premium parts, signed by Dave Starr with their own serial number.

Note: Most guitars manufactured overseas in Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
