Wiring Harness for Fender J-Bass: PRO

Regular price $64.95

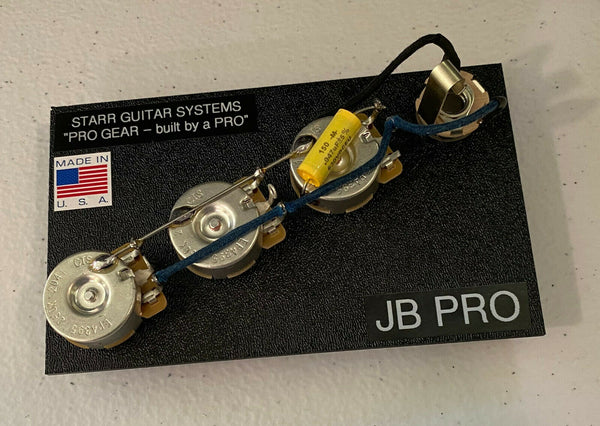

STARR GUITAR SYSTEMS Fender Jazz Bass Harness- PRO

Premium replacement electronics for your Fender J-Bass!

Included in each SGS "PRO" Jazz Bass  set:
3) USA made CTS Vintage Style 250K audio taper short solid shaft pots, Includes nut, lock, and dress washer.
1) Mallory capacitor .047 uf 630 volt
1) Switchcraft #11 input jack with heat shrink support/protection on both lugs.
4) Vintage style pre tinned blue & black cloth wiring, custom made for us by GAVITT WIRE here in the USA!

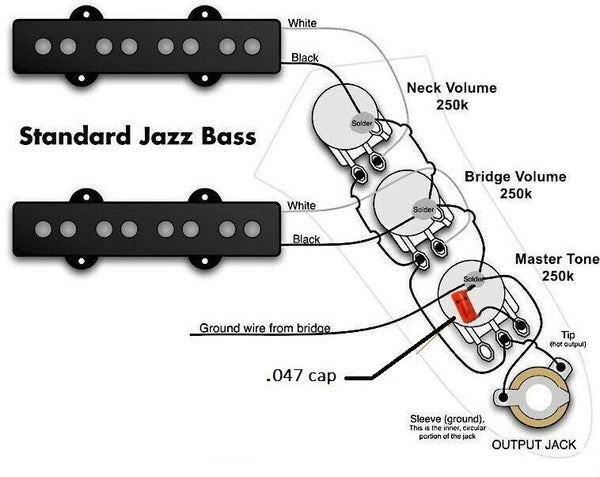

1) Wiring diagram (see photos above)
1) Assembly template board



Each set is assembled, hand wired and soldered in the USA using premium parts. Upgrade your import bass electronics, or replace your old worn out parts with these premium replacement units! Simply attach your pickup wires, bridge ground wire, and you are ready to rock! All sets are signed by Dave Starr and have their own serial number.


Note: Most guitars manufactured overseas in South Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
