Wiring Harness for Fender J-Bass: Basic

Regular price $30.45

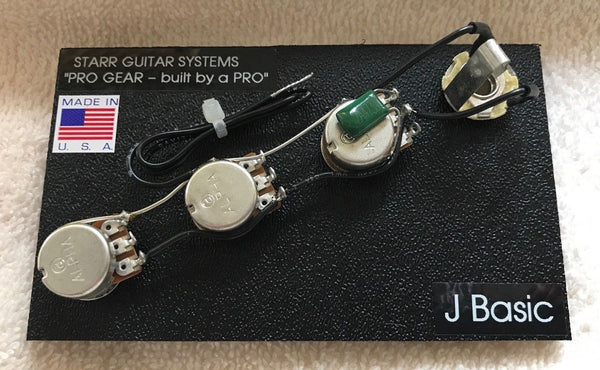

STARR GUITAR SYSTEMS low priced harness for Fender J-Bass.

This low cost system is a great deal if you want to get an old bass up & running, or building a bass and want to save some money!

Included in each JBasic set:
3) 250K Alpha Pots, Audio Taper, with hardware
1) Yibuy
.047 mfd Capacitor
5) Gavitt 22 gauge guitar wires
1) Mojo Tone input jack with heat shrink protection covering both terminals.
1) Bridge ground wire

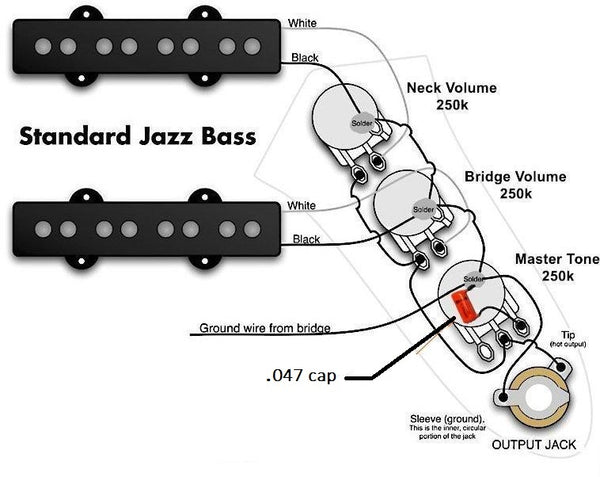

1) Wiring diagram (see photo section)
1) Assembly template board

Each set is assembled, hand wired and soldered in the USA using premium parts. Upgrade your import bass electronics, or replace your old worn out parts with these premium replacement units! Simply attach your pickup wires, and you are ready to rock! All sets are signed by Dave Starr and have their own serial number.

Note: Most guitars manufactured overseas in South Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
