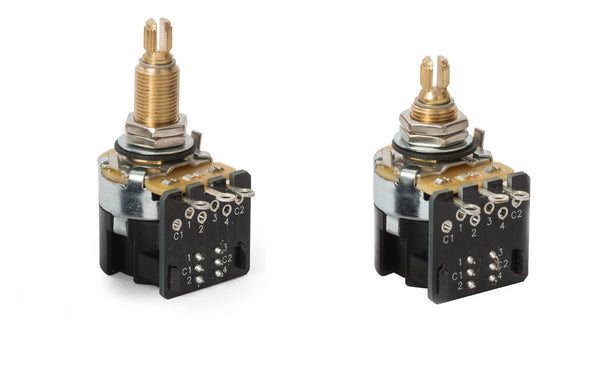

(2) set of two CTS 500K audio taper pots with DPDT push/pull switch. Choose either LONG or SHORT shaft.
LONG SHAFT: CTS 500K long thread audio taper pot with DPDT push/pull switch. split shaft; 3/4" x 32 threaded bushing, 3/8" long, includes nuts, lock washer & dress washer. Requires 1" cavity depth.
SHORT SHAFT: CTS 500K audio taper pot with DPDT push/pull switch. split shaft; 3/8" x 32 threaded bushing, 3/8" long, includes nuts, lock washer & dress washer. Requires 1" cavity depth.
The long shaft fits Les Paul® and other thick, carved-top solid bodies. Short shaft is great for Strats and Teles.
The double-pole double-throw switch adds lots of wiring options. Pull the knob to coil-cut a humbucker, switch a pickup in/out, or control anything: the switch is electrically separate from the control pot.
Their precision audio taper gives smoother, more accurate response than you'll get with economy pots. The volume swells evenly from 0 to 10, with no abrupt changes.
Each CTS pot includes a flat washer, lock washer, and two hex mounting nuts for custom height adjustment on a pickguard or control plate.
