Wiring Harness for Gibson SG-PRO-LEFTY

Regular price $131.25

STARR GUITAR SYSTEMS Harness upgrade for Gibson SG PRO "LEFT HANDED" model

The sad truth is.... that many left handed guitars & basses, even expensive ones use right handed pots! Why? Because most companies are to cheap to install the proper left handed pots that only cost a few dollars more. They also don't want to be bothered with the cost of reverse wiring for such a small percentage of the market. So what you might have is a great playing lefty with right handed electronics on board. The taper and control on the pots will be all wrong! Here is the solution....We use actual CTS left handed pots for the proper taper and control!

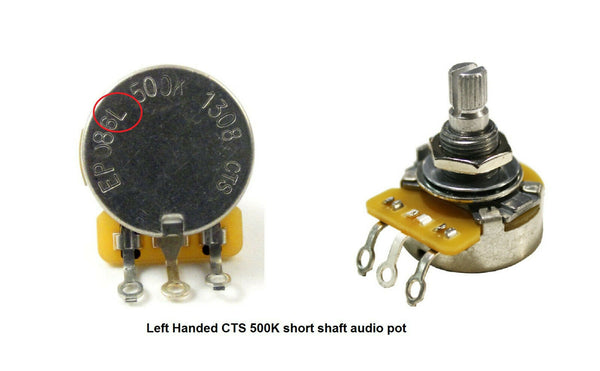

4) Left-Handed CTS 500K Audio Pots, 24 spline split knurled shaft with nut, lock and dress washer. Threaded bushing is 3/8" tall
2) Mallory .022 capacitors 630v

1) Switchcraft L Style 3 way pickup selector

1) Switchcraft input jack #11L with 3/8" long threaded portion

1) Gavitt vintage style cloth wire BLACK n WHITE

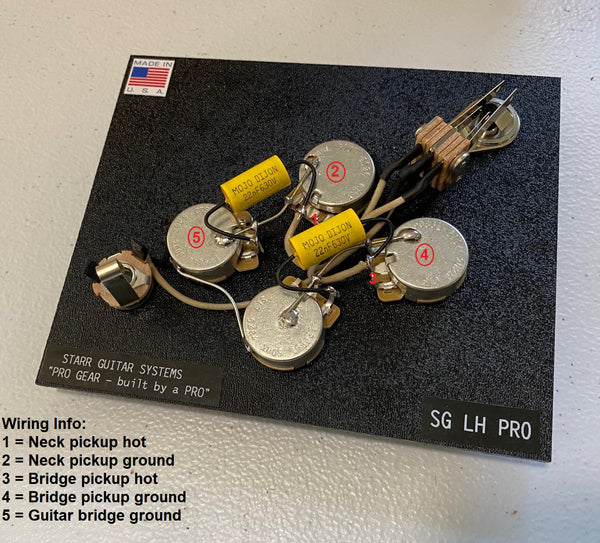

1) Wiring diagram (see photo section)
1) Assembly template board



Wiring diagram (sent via email)

Replace your old worn out parts with these premium replacement units! Each set is assembled, hand wired and soldered in the USA using premium parts. Each unit signed by Dave Starr and have their own serial number.

Note: Most guitars manufactured overseas in Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
