Wiring Harness for Gibson Explorer - Lefty

Regular price $99.75

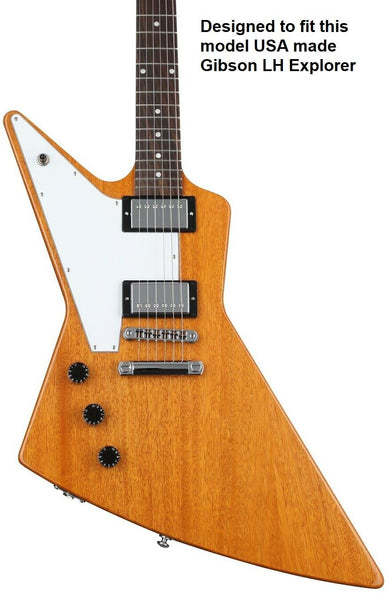

STARR GUITAR SYSTEMS Harness upgrade for Gibson Explorer-Left Handed

STARR GUITAR SYSTEMS wiring replacement electronics for Gibson Explorer. Replace your old worn out parts with these premium replacement units! Each set is assembled, hand wired and soldered in the USA using premium parts.

NOTE: When ordering, please email us the distance (center to center) of the 3 pots on your Explorer. We have seen several variations of the Explorer pots spacing, and we want to make sure you get the right one! (most of them have the pots 2 inches apart, center to center)

Included in each Gibson Explorer set:

3) CTS Left Hand 500K split shaft short pots (3/8 inch thread)
1) Switchcraft L style 3 way switch with cable
1) Switchcraft #11 input jack
1) Orange Drop .022 Capacitor 100V
Gavitt vintage style cloth wire black & white
18 gauge solid tinned copper ground wires
Assembly board

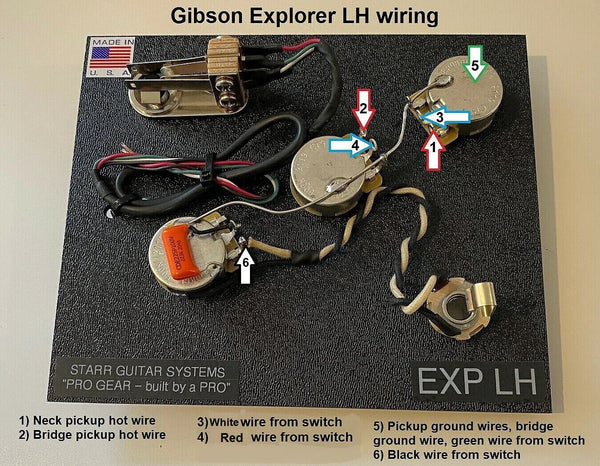

Wiring diagram (see photo section)

Replace your old worn out parts with these premium replacement units! All units are signed by Dave Starr and have their own serial number.

Note: Most guitars manufactured overseas in Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
